Model-Based Definition (MBD) Inspection vs 2D Ballooning: What Quality Teams Need to Know

Key takeaways

• MBD inspection uses 3D PMI as the source of truth, while 2D ballooning relies on manually interpreted drawings.
• A connected CMM + inspection platform improves traceability by linking each measured value back to the exact characteristic and revision context.
• The strongest MBD tools can import native or standards-based 3D PMI directly and generate FAIR outputs without rebuilding everything on a 2D print.
• GroundControl supports robust 2D-first FAIR workflows today and has MBD support on the roadmap.

Why this topic matters now

Aerospace and defense quality teams are under pressure to move faster while reducing escapes, rework, and customer pushback on documentation. As more OEMs publish product definition in 3D, many suppliers are asking the same questions:

• How does model-based definition inspection actually differ from 2D drawing ballooning?
• What traceability advantages appear when the inspection workflow is connected to a CMM?
• Which software platforms can generate FAIRs from 3D PMI without first converting to 2D?

This guide answers those questions in practical terms, and explains how GroundControl fits into that transition.

How MBD inspection differs from traditional 2D ballooning

In a traditional first article workflow, quality engineers usually:

1. Open a 2D drawing (PDF, TIFF, or scanned print).
2. Manually balloon each characteristic.
3. Build an inspection table that maps each balloon to nominals and tolerances.
4. Collect results manually or import from CMM output.
5. Assemble AS9102 Forms 1, 2, and 3.

That workflow can work well, but it has friction points:

• Balloon numbering can drift when drawings are revised.
• Manual interpretation of GD&T and notes can vary by person.
• Characteristic definitions are separated from the geometry context.
• Traceability often lives across multiple files, spreadsheets, and emails.

With an MBD-driven workflow, the process starts from the 3D model with embedded product manufacturing information (PMI). Instead of recreating characteristics from a 2D print, inspection planning software can read model features, dimensions, tolerances, and annotation directly from the digital definition.

What changes in first article workflows

When MBD is done well, quality teams typically see:

• Less manual setup: fewer hand-built characteristic lists.
• Stronger revision control: characteristics stay tied to model revisions.
• Better context: each requirement is linked to 3D geometry, not only a callout on a flat view.
• Faster updates: model-driven changes can propagate through planning and reporting workflows with fewer manual edits.

In short, MBD reduces translation work between design intent and inspection execution.

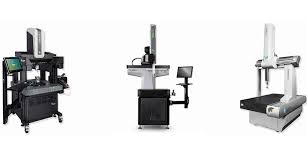

Data traceability benefits of MBD + CMM-connected inspection

One of the biggest gains from MBD-based inspection is end-to-end traceability, especially when the system is connected to CMM programs and output.

What "traceability" means in practice

For each inspected characteristic, strong traceability records:

• The original requirement source (model feature + PMI or drawing reference).
• Part/revision context and inspection plan version.
• The measurement method (CMM, gage, manual entry, etc.).
• Raw and processed measurement values.
• Pass/fail logic and report output (including FAIR fields).

Why CMM connectivity improves confidence

When CMM results are imported or synchronized directly (instead of copy/paste), quality teams reduce several common issues:

• Transcription errors.
• Broken characteristic mappings.
• Missing context about measurement runs and timestamps.
• Inconsistent data between shop-floor results and final FAIR output.

For regulated programs, this matters because customer and auditor questions often come down to proof: "Show me exactly how this value was captured, mapped, and reported."

An MBD-driven platform connected to CMM data can make that proof chain much clearer.

Which automated inspection tools support direct 3D PMI import for FAIRs?

The ecosystem keeps evolving, but quality teams evaluating MBD software usually look for three capabilities:

1. Direct 3D PMI ingestion from native CAD or standards-based formats.
2. Automatic characteristic generation from PMI, with minimal manual recreation.
3. FAIR reporting workflows that preserve traceability back to source requirements.

Examples of commonly cited vendors and educational references in this space include:

• Capvidia MBDVidia
• Verisurf on MBD inspection benefits
• High QA on 3D-MBD inspection planning

The right choice depends on your CAD ecosystem, customer requirements, CMM stack, and reporting expectations.

Where GroundControl fits today (and what is coming)

GroundControl today is built to help aerospace and defense suppliers run reliable, auditable first article and quality workflows quickly, especially in 2D-first environments.

Teams use GroundControl to:

• Extract and manage characteristics from drawing-based workflows.
• Validate measured values against design limits.
• Import CMM-related measurement data and map it into FAIR workflows.
• Produce clean, customer-ready AS9102 documentation with stronger consistency.

MBD support status

GroundControl does not currently provide full MBD-native inspection planning from direct 3D PMI as a generally available feature.

That said, MBD support is on our product roadmap. Our direction is to preserve the strengths teams already rely on (speed, compliance, traceability, and clean FAIR output) while extending them into model-based workflows.

If your organization is planning an MBD transition, this is a good time to standardize your downstream FAIR and traceability process so your data model is ready when 3D-first inspection inputs are introduced.

A practical transition path for quality teams

Most suppliers will not jump from fully manual 2D processes to end-to-end MBD overnight. A phased approach is usually more successful:

1. Stabilize your current FAIR workflow so characteristics, evidence, and approvals are consistent.
2. Digitize measurement intake (especially CMM-connected data paths) to reduce manual entry risk.
3. Define traceability requirements before software changes: what must be linked, retained, and reportable?
4. Pilot MBD on selected parts where 3D PMI is already mature.
5. Expand gradually while maintaining AS9102 output quality and customer confidence.

This lets teams capture value now while preparing for the MBD future.

Bottom line

Model-based definition inspection is not just a format change from 2D to 3D. It is a workflow change that can improve characteristic integrity, traceability, and reporting efficiency when implemented thoughtfully.

For teams still running 2D-first FAIRs, GroundControl helps reduce errors and speed up documentation today. As MBD requirements expand across the supply chain, our roadmap is aligned with helping quality teams adopt model-based workflows without losing control of compliance and delivery speed.

If you want to discuss your current inspection stack and MBD readiness, talk with GroundControl.
