Key takeaways
- Successful MBD rollout is mostly a process and data-governance effort, not just a software purchase.
- Suppliers should standardize characteristic mapping, revision control, and traceability before scaling.
- A phased deployment lowers risk: pilot first, prove repeatability, then expand by program and customer.
- GroundControl can support strong 2D-first FAIR operations now while teams prepare for MBD-native workflows.
Why suppliers need a rollout checklist
Many suppliers are receiving more 3D-first product definitions but still operate mixed environments: some programs arrive with mature PMI, others still depend on 2D drawings. Without a rollout plan, MBD adoption can create inconsistent inspection methods, reporting gaps, and customer friction.
Use this checklist to move from ad hoc experimentation to a controlled implementation path.
Phase 1: Align business and customer requirements
Before changing tools, align expectations with customers and internal stakeholders.
Phase 1 checklist
- Identify which customers and programs are already delivering MBD-ready datasets.
- Confirm required deliverables (AS9102 Forms, customer templates, digital evidence expectations).
- Define acceptable source-of-truth rules for each program:
- 3D PMI primary
- 2D drawing primary
- hybrid with precedence rules
- Document compliance constraints (ITAR, CMMC, retention periods, audit requirements).
- Assign accountable owners across quality, manufacturing engineering, and IT.
Phase 2: Audit data readiness (CAD, PMI, and revisions)
An MBD rollout fails fast if PMI quality is inconsistent.
Phase 2 checklist
- Evaluate incoming models for PMI completeness:
- feature coverage
- GD&T clarity
- datum strategy consistency
- Verify supported CAD formats and translation quality in your inspection stack.
- Define how model revisions are received, approved, and frozen for inspection planning.
- Create a versioning rule so every measurement result ties to:
- part number
- revision
- inspection plan version
- Flag programs with weak or ambiguous PMI and keep them on controlled 2D workflows until ready.
Phase 3: Standardize characteristic and FAIR mapping
This is where many teams lose consistency. Standardized mapping rules prevent rework.
Phase 3 checklist
- Define a single characteristic numbering convention across programs.
- Set rules for deriving Form 3 rows from model features/PMI.
- Establish how special characteristics and key characteristics are marked and reviewed.
- Create validation checks for nominal, tolerance, and units consistency.
- Confirm how FAIR outputs preserve traceability back to source requirements.

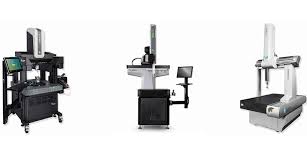

Phase 4: Build measurement and CMM traceability workflows
MBD value increases significantly when measurement capture is connected and auditable.
Phase 4 checklist
- Define approved measurement methods per feature type (CMM, portable arm, bench tools, manual).
- Standardize CMM data import structure and mapping logic.
- Require capture of metadata for each run:
- machine/program identifier
- timestamp and operator context
- raw measured values
- Validate that measurement-to-characteristic mapping is deterministic and repeatable.
- Add exception handling rules for unmapped or out-of-family measurements.
Phase 5: Pilot on a controlled part family
Do not launch MBD everywhere at once.
Phase 5 checklist
- Select 1-2 representative parts with stable design and clear customer communication.
- Run pilot outputs in parallel with your current method for comparison.
- Measure pilot KPIs:
- time to inspection plan
- time to completed FAIR
- mapping error rate
- number of manual overrides
- Hold a formal go/no-go review before expanding scope.
Phase 6: Govern change management and training
Tooling alone does not create repeatable outcomes; team habits do.
Phase 6 checklist
- Publish role-based SOPs for quality engineers, CMM programmers, and reviewers.
- Train reviewers to audit traceability links, not just final pass/fail results.
- Define escalation paths for PMI ambiguity and revision conflicts.
- Introduce internal audit checkpoints during the first 90 days of rollout.
- Update onboarding materials so new team members follow the same process.
Phase 7: Scale with controls
After pilot success, scale deliberately across programs and sites.
Phase 7 checklist
- Expand by customer/program tier, not all at once.
- Reuse validated templates for inspection planning and FAIR generation.
- Track ongoing metrics monthly and investigate drift early.
- Keep a fallback path to 2D workflows for low-readiness programs.
- Revalidate process controls whenever CAD or inspection software changes.
Common rollout mistakes to avoid
- Treating MBD as an IT project instead of a cross-functional quality initiative.
- Skipping traceability design and assuming it will "come with the software."
- Expanding before pilot metrics prove repeatability.
- Ignoring mixed-environment reality where some suppliers must support 2D and 3D in parallel.
Where GroundControl fits
GroundControl helps suppliers run dependable first article and inspection reporting workflows today, especially in drawing-based environments that still require speed, consistency, and clear audit trails.
GroundControl currently does not offer full MBD-native inspection planning as a generally available capability. MBD support is on our roadmap. Our goal is to help quality teams move toward model-based workflows without disrupting the compliance and delivery reliability they need right now.
If you are planning MBD adoption, start by hardening your current FAIR and traceability process first. That foundation makes the MBD transition faster and lower risk.
