How to Read a Feature Control Frame
A feature control frame is the boxed callout on a drawing that applies a geometric tolerance to a feature. You read it left to right, and each compartment answers a different question: what is being controlled, how much variation is allowed, what shape that allowance takes, and relative to what.
Misreading even one compartment can mean measuring the wrong thing, correctly. Some examples include writing the wrong method into the inspection plan, buying a fixture you did not need, or rejecting a part that was good.
What is a feature control frame?
A feature control frame is a rectangular box on an engineering drawing that specifies a geometric tolerance. It is how GD&T gets written down. Every frame has at least two compartments, but most have three to five.
For a broader introduction to the language the frame is written in, see Understanding GD&T: A Practical Guide for Aerospace Quality Teams.

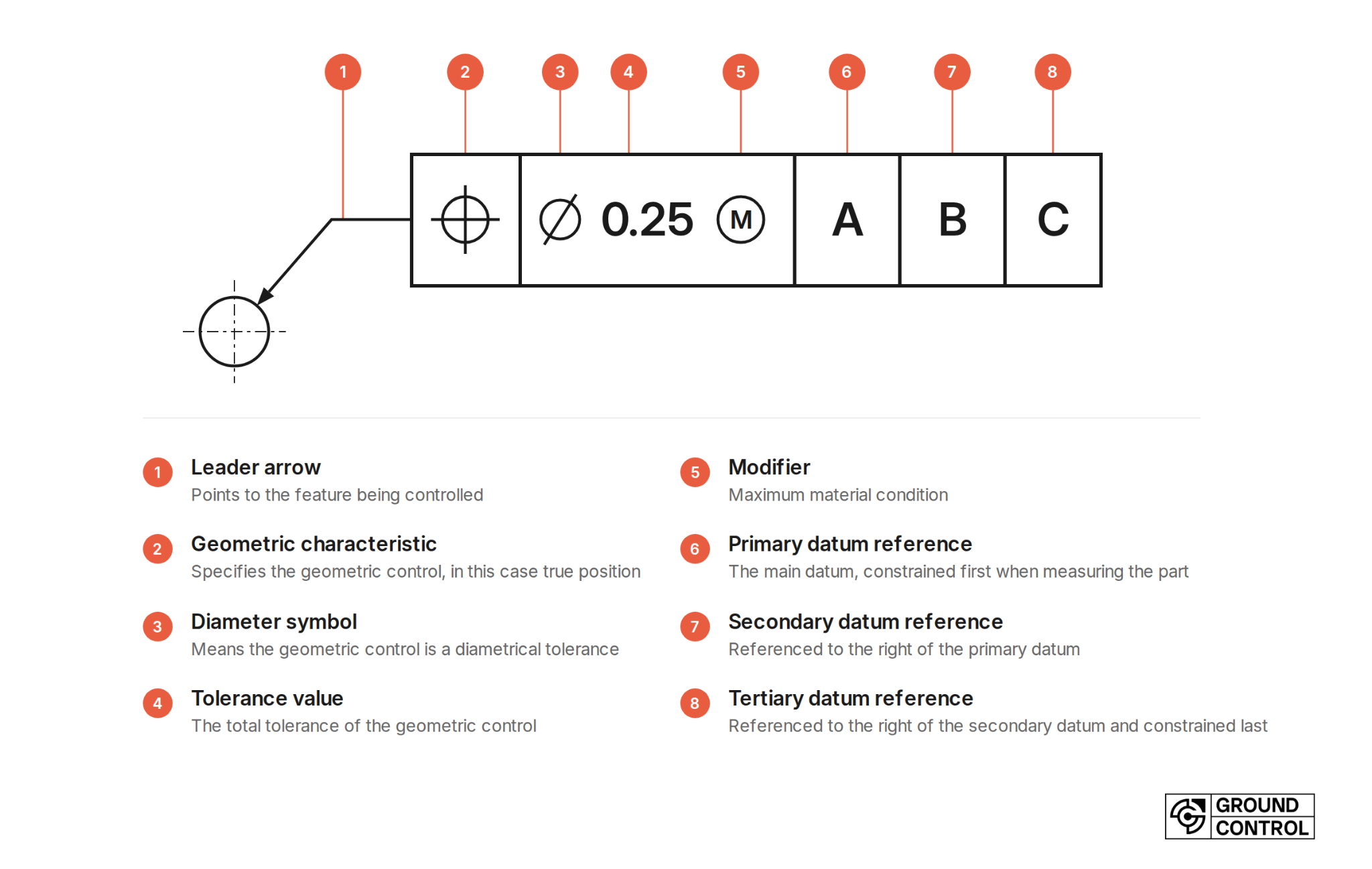

The parts of a feature control frame
- Leader arrow. Points to the feature being controlled. For example, if it points to a surface, then that surface is controlled by GD&T. However, the leader arrow is optional and may not be present on all drawings.
- Geometric characteristic. The first compartment names the geometric control. Read more about GD&T here.
- Tolerance value. The total tolerance of the geometric control, based on the drawing standard.
- Modifier. An optional symbol that changes how the tolerance applies; if no modifier follows a datum feature size, the datum feature applies regardless of material boundary.
- Diameter symbol. If the geometric control is a diametrical tolerance, then the diameter symbol (Ø) will be in front of the tolerance value. If not, there's no symbol.
- Datum references. This section includes a primary, secondary, and/or tertiary datum reference. The letter corresponds to a feature on the part that will be marked with the same letter. The primary datum is usually in 3 places to fix 3 degrees of freedom. A secondary datum will be to the right of the primary, and a tertiary datum will be to the right of a secondary datum.
How to read a feature control frame, step by step
- Follow the leader arrow. Decide whether the control lands on a surface or on a feature of size. That sets what the tolerance zone constrains.
- Read the geometric characteristic symbol. It tells you the category of control and whether datums are required, optional, or not permitted.
- Read the diameter symbol. Diameter symbol means a cylinder. Spherical diameter means a sphere. Nothing means two parallel planes.
- Read the tolerance value as a total zone width, not a plus or minus.
- Read the modifier, if there is one. No modifier in the tolerance compartment means the control applies regardless of feature size, with no bonus tolerance.
- Read the datum references in order. First listed is primary, second is secondary, third is tertiary. This sequence is your inspection setup.
A worked example

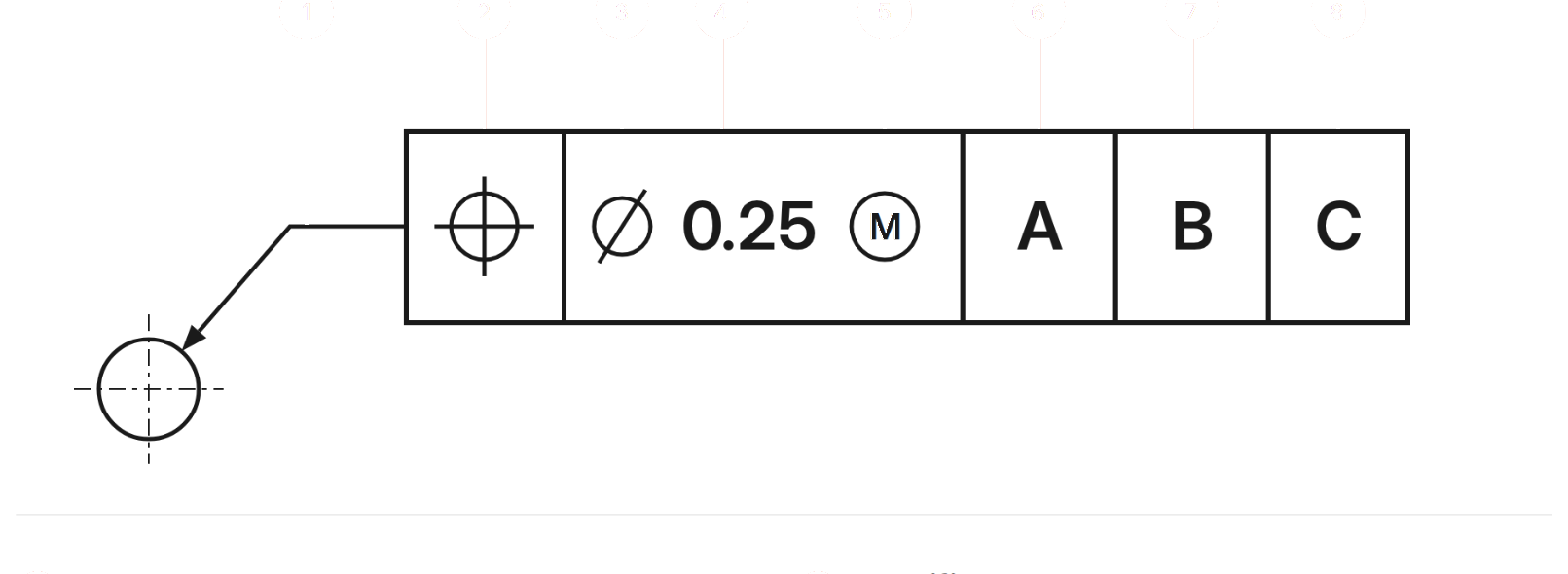

Take the callout above, applied to a hole. Read out loud, it says:
The axis of this hole must lie within a cylindrical zone 0.25 in diameter, located at true position by the basic dimensions on the drawing. That zone applies when the hole is at its maximum material condition, which for a hole is its smallest allowed size. As the hole is produced larger, bonus tolerance becomes available, equal to the amount it departs from MMC. The zone is established relative to datum A first, then datum B, then datum C.
A hole produced 0.03 larger than MMC earns 0.03 of additional position tolerance, for a total zone of 0.28. The bonus is equal to the departure, not merely proportional to it.
For inspection, the datum sequence is your setup instruction. Datum A constrains the part first. Datum B constrains it next, and Datum C constrains what is left.
The twelve geometric characteristic symbols
| Symbol | Characteristic | Applies to | Datums | Description | Modifier applicable to datum feature |
|---|---|---|---|---|---|
| ⏤ | Straightness | Line element or derived median line | Not permitted | Used to describe how straight a given linear element can be. | cannot be modified |
| ⏥ | Flatness | Surface or derived median plane | Not permitted | Used to limit the maximum flatness error allowed for the specified surface. | cannot be modified |
| ○ | Circularity | Surface | Not permitted | Used to describe how close the chosen cross section needs to be to the specified circularity. | cannot be modified |
| ⌭ | Cylindricity | Surface | Not permitted | Describes a theoretical cylinder in which the overall form of the cylindrical feature is controlled. | cannot be modified |
| ⌒ | Profile of a line | Surface, 2D cross section | Optional, required when located or oriented | Describes a 2D tolerance zone across a line. The profile controls all points along the simple or complex line. | cannot be modified |
| ⌓ | Profile of a surface | Surface, 3D | Optional, required when located or oriented | Describes a 3D tolerance zone across any surface. The profile controls all points along the simple or complex surface. | cannot be modified |
| ∠ | Angularity | Surface, axis, or median plane | Required | Describes the specific orientation of a feature to another based on a referenced angle set as a datum. | Ⓜ |
| ⊥ | Perpendicularity | Surface, axis, or median plane | Required | Used to control the orientation of a surface with respect to a specified datum at 90 degrees. | Ⓜ |
| ∥ | Parallelism | Surface, axis, or median plane | Required | Used to control the orientation of a surface or axis with respect to a specified datum that is parallel to it. | Ⓜ |
| ⌖ | Position | Feature of size | Usually required | Describes the total permissible variation that a feature can move from its true position. The position is given as coordinates defined by datums. | Ⓜ Ⓛ |
| ↗ | Circular runout | Surface | Required | Used to control radial deviations of the specified cross sectional element of a circular feature. Taken with respect to the axis of rotation referenced by the specified datum. | cannot be modified |
| ⌰ | Total runout | Surface | Required | Used to control radial deviations of the specified cross sectional element of a cylindrical feature. Taken with respect to the axis of rotation referenced by the specified datum. | cannot be modified |
Modifiers
Modifiers in GD&T are symbols and letters that are added to a feature control frame to define tolerances, define material conditions, and control how a feature's size relates to the limits set by the constraints.
| Modifier | Symbol | Description |
|---|---|---|
| Least Material Condition | Ⓛ | Feature of size symbol that describes the condition of a feature or part where the least amount of material exists within the dimensional tolerance. |
| Maximum Material Condition | Ⓜ | Feature of size symbol that describes the condition of a feature or part where the maximum amount of material exists within the dimensional tolerance. |
| Projected Tolerance Zone | Ⓟ | Tolerance must be assessed beyond the surface extents of the feature. |
| Free State | Ⓕ | Tolerance must be assessed in an unrestrained state. By default all dimensions are evaluated in a Free State unless otherwise specified. |
| Tangent Plane | Ⓣ | Indicates that a specific control is applied to a theoretical tangent plane within the high points of an irregular surface rather than the elements of the surface themselves. |
| Unequally Disposed Profile | Ⓤ | Used to apply unilateral or unequal tolerance zones to a profile. |
Five common misreads
- Treating the tolerance value as bilateral. It is a total zone. This one silently doubles the tolerance an inspector thinks they have.
- Ignoring datum precedence. A, B, C is a setup sequence. Reordering it changes the result on a real part.
- Applying a datum modifier to the feature tolerance. Circled M after a datum letter is a boundary condition on the datum, not a bonus on the feature.
- Assuming a bonus exists when no modifier is shown. In the tolerance compartment, none means RFS and no bonus. In a datum compartment, none means RMB and no shift.
- Reading a composite lower segment as a location control. It is orientation and feature-to-feature relationship only.
Carrying the frame through to your FAI
Once the frame is read correctly it still has to survive the trip to the inspection report. On an AS9102 first article, every geometric callout becomes a ballooned characteristic with its own line on Form 3, and the requirement recorded there needs to reflect the whole frame, including modifiers and datum references, not just the tolerance value.
That is where reading errors become documented errors. A frame recorded as "0.25" without its diameter symbol, its material condition modifier, or its datum sequence is not the requirement the customer specified, and a reviewer checking it against the print will find the difference.
